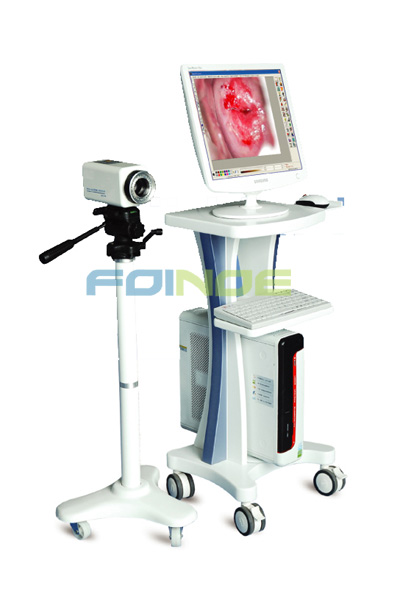

FNC-21 Video Colposcope is applicable to detection of pathological
change in Vulva, vagina and the cervix, filtering cervix cancer by
fluorescence indirectly, and images management.
Features:
The outlook is fashionable and convenient.
We adopt the color digital CCD camera of high resolution and clarity. (Sony)
Our Colposcope is the sole dismountable light source, which has been got the patent.
Our bulbs adopt supper cold LED light source whose diameter is 3 mm. And in one light source there are 30 bulbs.
There are “freeze, filter, zoom in, zoom out, white
balance” button on the top of the camera for the speedy automatic
function.
Professional green-filter technique
Image freeze
White balance
Auto focus
Timing of acetic acid and iodine reaction tests
Powerful image software and workstation system
|
CCD |
1/4' Super HAD CCD |
|
Pixels |
≥830,000 pixel |
|
Illumination (min): ≤ |
0.01Lux |
|
Lens: |
Sony 18 times focus |
|
Resolution |
≥480+ lines |
|
Light source |
30-point ringed LED, lili-white, super bright, cool, parallel, shadowless, 100, 000 hours longevity |
|
Focus |
10mm ～400mm |
|
Zoom magnification |
Optical ≥54X, Eelectronical ≥12X |
|
Collection model |
Electronic collection |
|
Depth of field |
5-200mm |
|
Focalizing |
Auto/Manual, quick |
|
Signal-to-Noise |
≥52 db |
|
Color filter |
Green |
|
Image collection |
Y |
|
Cineloop |
Y |
|
Output port of the image |
-Video/PAL/NTSC |
|
Green Filter |
Digital filter based on CCD imaging |
|
Eliminate polarization |
Y |
|
Field of vision |
Φ=2.5-320mm |
|
Software package |
Y |
Software:
Capacity of freezing and storing static images
continuously and a maximum of 99 images available for reviewing
simultaneously in scroll.
Capacity of cine loop and record continuously for different frequencies dynamic image in sampling.
Capacity of comparison of 4 pictures in the screen,
multi-orientation and dynamic consultation, copy, freeze, and other
function.
Supply hundreds of pathological reference image. Can help doctor compare the pathology and make the diagnoses.
Need not be inputted because of abundant diagnosis information
Capacity of internet report, and transmit the data
through the internet to make an long-distance consultation and share of
the information
Color image report in multi-formats and freely input information to make the user template
Tens of image enhanced functions to improve the checking rate of micro-focus
Sole Filter function to make sure to see the vein clearly with less loss of the light.
Easy operating software with icon, which can freeze
and store 99 images consecutive and multi-orientation and dynamic
consultation.
Operation System:
Windows 2000
Windows XP-SP2
Windows VISTA
Standard Configuration:
Image capture system
Image control system
Bracket
Footswitch
Two light source
Software
Packing case
Optional:
- Machine: PC or Laptop
- Monitor: LCD or CRT
- Printer
- Trolley: Y (foldable)
