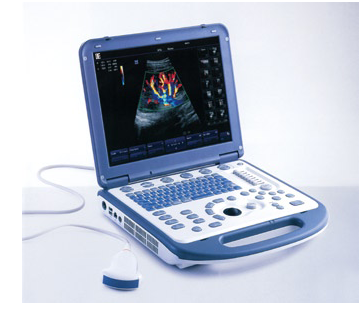

Descriere produs: The Magic 9000 laptop ultrasound scanner continues the revolution in recent advances
in portable scanning – its high performance offers no compromises.
· Scan-Mode Convex, Linear and Phased Array
· Grey Shades 256
· Image Mode B, B+B, B+M, M, Colour mode, Power mode, PW Mode, CW
· Transducers Variety of Convex, Linear & Phased Array Probes
5.0 / 6.5 /8.0 MHz (Micro-Convex)
5.0 / 7.5 / 10.0 MHz (Linear T-Shaped)
2.0 / 2.5 / 3.0 MHz (Phased Array)
· Zoom up to 2 x
· TGC control 8 Steps
· Measurement Distance, Area, Volume, Circumference, Angle, EDD,
Craniological Measurement
· Monitor 15” High Definition LCD Monitor
· Patient Information Comprehensive Patient Data Management
· Cine Memory 1024 Frames
· PC- Connection USB-Port (2), VGA, Serial Port, Audio Port,
Mic Port, Ethernet Interface
· Power Supply Battery and Mains Operated
· Video Output Composite Video / VGA / S-VIDEO / RGB
· EKG-Module with Cardio-Software CW/PW
· Dimensions H = 361 x W = 357 x D = 75 mm
· Weight only 6 kg
· Pregnancy software, Veterinary Body Mark
· Optional Trolley, Bag, DICOM 3.0
|
