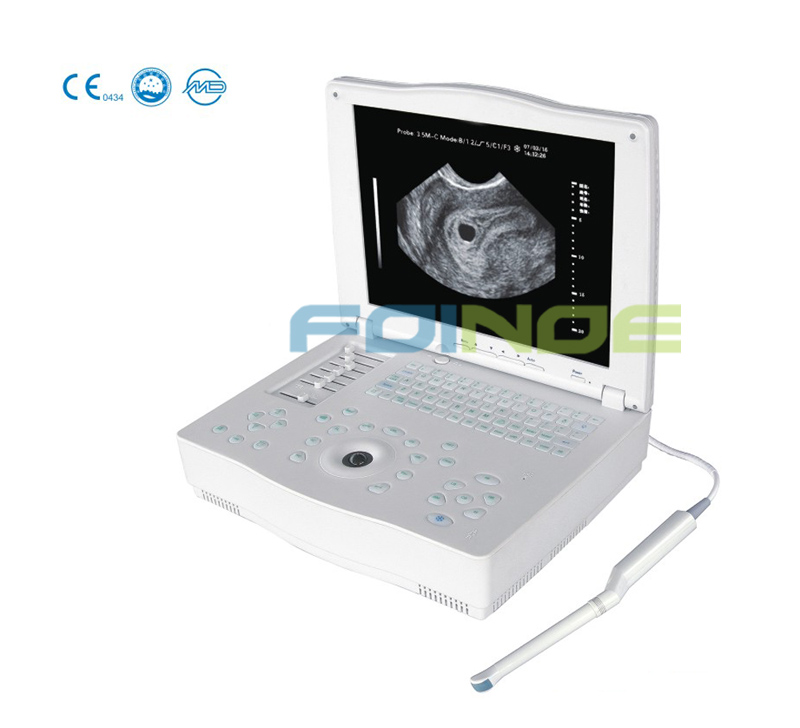

Laptop type linear & convex array, multi-function
portable ultrasonic diagnosis instrument. It adopts advanced imaging
process technologies, providing high resolution and high definition
images. BYT-1000's electronic scanning, multi-stage dynamic focusing,
variable aperture, digital scanning and switching techniques are ideal
suitable for applications in superficial organs, abdominal, cardiology,
gynecology, obstetrics and urology for hospitals and clinics.
Features:
15'' LCD display
Multi-frequency probes
Real-time zooming
128-frame cine loop
Multi-segment TGC adjustment
Imaging Processing:
Partial zoom in
real time, gray curve control, STC curve, edge enhancement, dynamic
range, frame correlation, 256 gray scale, image reverse function
Pre-processing: Multi-segments TGC adjustment, frame correlation, image direction
Post-processing: Left/right, up/down, positive/negative
Zoom: Magnification (4 steps)
Cine loop: 128 frames
Software Functions:
General measurement: Distance, circumference, area, oval, trace, volume, HR, gestational week
Obstetric
measurement soft: GS, CRL, BPD, AC, HC, FL, AFI, EDD, and calculating
fetus weight, pregnancy week, expected delivery date, fetal
physiological rating according to the previous measurements
Peripheral Ports:
VGA port
PAL-D video output
Standard Configuration:
Main unit
15 inch LCD display
128-frame cine loop
One probe connector
3.5MHz electronic multi-frequency convex probe (2.5-5.0MHz)
Optional:
Electronic trans-vaginal probe (5.0-7.5MHz)
Linear superficial probe (6.5-8.5MHz)
Linear trans-rectal probe (5.0/7.5/10.0MHz)
Thermal paper printer: Sony UP 897MD, Mitsubishi P93C/W
