Descriere produs:
Technical Data
Intended Application：
Abdomen, Gynecologic and Obstetric, small parts, urological, cardio, etc.
Main specification
LINUX system
Probe element：80 elements
Channels：≥32 channels digital beaming composite
Standard probe：3.5MHz convex multi-frequency probe
(Frequency conversion scope：2.0 / 2.5 / 3.5 / 5.0 MHz)
Optional probe：6.5MHz intra-vaginal frequency conversion probe.
(frequency conversion scope：4.0 / 5.0 / 6.5 / 7.5 MHz)
Optional probe：7.5MHz frequency conversion probe.
(frequency conversion scope：5.0 / 6.5 / 7.5 / 9.0 MHz)
Optional probe：5.0MHz micro-convex frequency conversion probe.
(frequency conversion scope：3.5 / 4.5 / 5.0 / 5.5 MHz)
Scanning angle：convex probe 60°，intra-vaginal probe 130°
Body mark： 64 kinds body mark with probe direction
Probe socket： 2 sockets, automatically identify the probe
Resolution：horizontal≤2mm，vertical≤1mm
Dead zone≤5mm（test report actually≤3mm）
Max scanning depth：≥17cm（test report actually≥20cm）
Geometry position precision：Transversal≤5％，Longitudinal≤5％（test report actually≤4％，Longitudinal≤4％）
Scanning mode：B、2B、4B 、B/M、M
28 grades depth adjustment under full visual field (10 kinds of magnification)
Gain：0～127dB
Dynamic scope：27～100dB，visible & adjustable
Four different angles / switchable width
Gray： 256
Imaging technique：full digital beam-composite, continuous dynamic focusing, dynamic aperture
Image storage: main unit Disk C 32 MB, 100 frames permanent storage
Cine loop：256 frames
8 stages TGC control
Image processing：pre-process
(continuous dynamic focus, dynamic aperture, dynamic filter）,
post-process（4 grades gamma correction）、frame correlation, black/white
reversal, left/right reversal, up/down reversal, edge enhancement, etc.
Depth hoist / local zooming
Frame frequency：30 frames/s
Measurement and analysis:
Normal measurement: distance, circumference, area(trochoid or ellipse), volume, angle, Stenosis（length, area）, etc.
Obstetric
measurement and analysis: BPD, CRL, GS, FL, HL, TAD,TBD, APBD, HC, AC,
GA,EFW, FT, LV THD, TCD, OFD, AFI, LMP, fetus growth curve( single
frame, Four frames), OB report.
Cardio measurement and analysis: M
routine measurement software package (depth, slope, heart rate, cycle),
cardio measurement software package (left ventricle function, mitral
valve, aorta, ejection period, cardiac muscle weight, cardio report,
etc.
Gyn. measurement and analysis: uterus volume, endometrium thickness, ovary volume, superior ovarian follicle, uterine neck long dia, GYN report, etc.
Urological measurement and analysis: residual urine, volume of prostate, Urological report
Report: OB report, fetus growth curve，cardio report, Gyn report, Urological report
Note：name, age, gender, hospital name, time, date, probe type, frequency, focus, frame correlation, gain, dynamic scope, etc.
Language: English – Chinese transform
Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
USB-A
socket for flash disk to store images directly (it can store both
patient image and relative report. Support file management, disk
management and software update.)
USB-B socket for transferring of the real time image (optional software of case report process center)
Output: PAL / NTSC
DICOM 3.0, software updated
Energy-saving
8 kinds internal pseudo color
Standard configuration:
Main unit: 1 PC
3.5MHz multi-frequency convex probe 1 PC
Probe sockets 2 PCS
USB
DICOM 3.0
Optional configuration:
6.5MHz transvaginal probe (multi frequency)
7.5MHz high frequency linear probe (multi frequency)
5.0MHz micro-convex probe (multi frequency)
Thermal print
cod produs: 1225855316
|

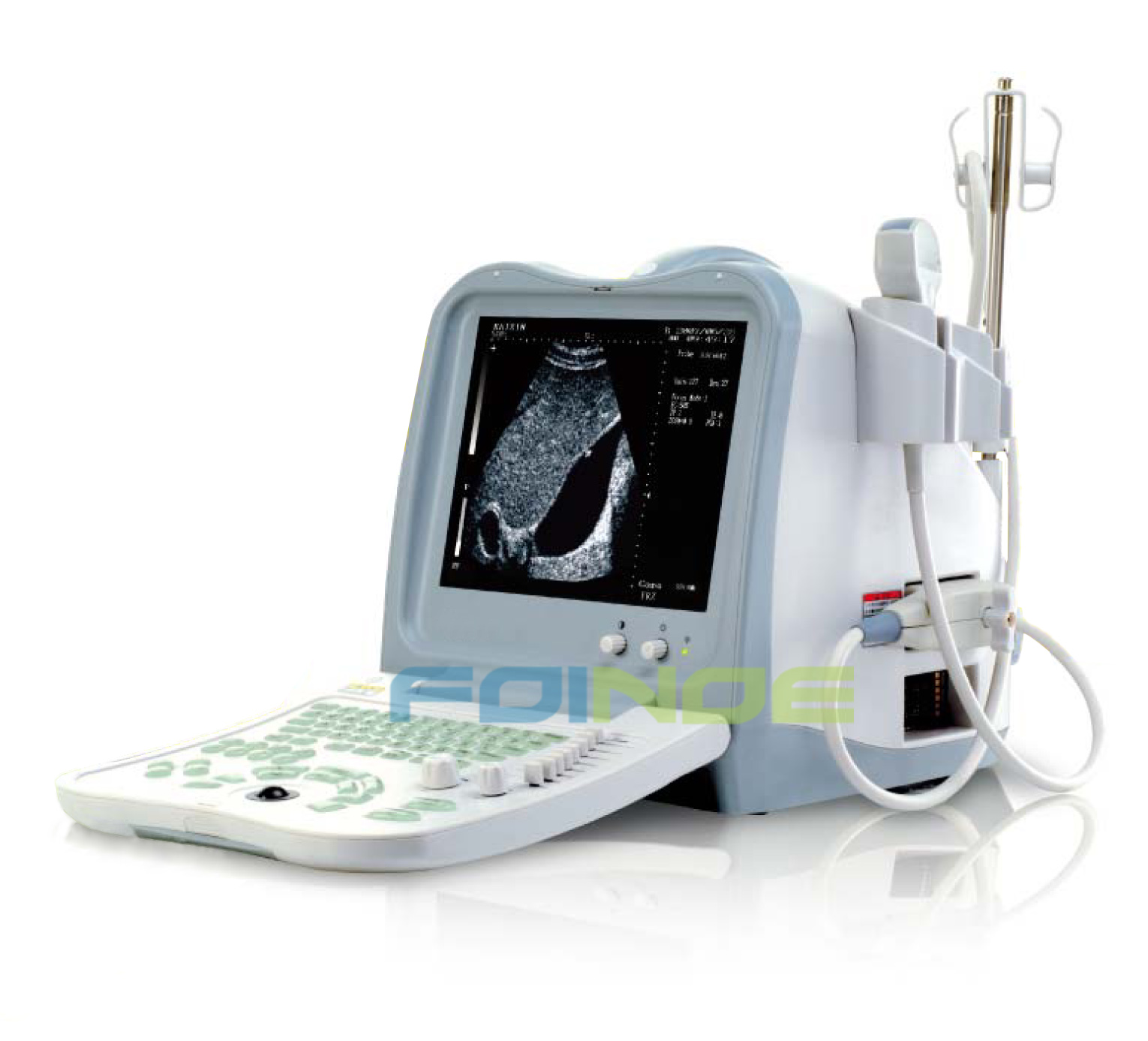

mareste imaginea
