Descriere produs:

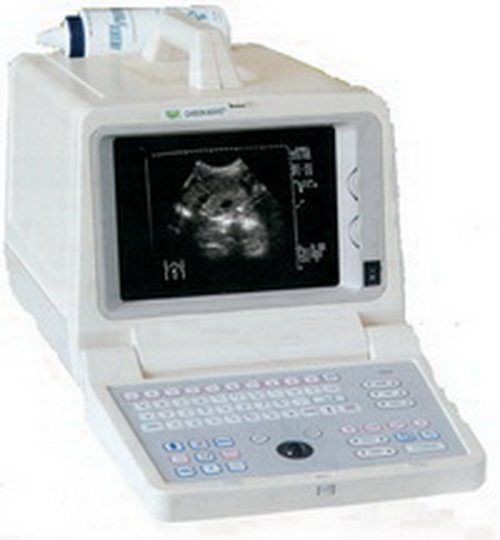

VETERINARY ECOGRAPH 10" SVGA monitor
with two probe connectors, cine memory card, without probes.
- Image reversing: left/right, up/down, positive/negative
- Zooming: x 1.0, x1.2, x1.5, x2.0 with scroll-up depth control
- Measurements: distance, circumference, area, volume (bladder volume, thyroid volume), 15 body marks.
- Reproduction software: Bovine: BPD, CRL, Trunk diameter,
Equine: GA, Canine: GS, CRL, HD, BD, Feline: HD, BD
Ovine: BPD, CRL, Trunk, Diameter
- Power supplies: 230V/50 Hz (110V/60 Hz on request)
Probes:
-Code 33932
Scanning method: Convex
Main frequency 3.5 MHz
Four-Step Multi-frequency:
2.5/3.5/4.0/5.0 MHz
Application: abdominal for Ovine, Canine and Feline
-Code 33938
Scanning method: Linear Rectal
Main frequency 5.0 Mhz
Four-Step Multi-frequency:
3.5/5.0/6.0/7.0 Mhz
Application: pregnancy for Equine, Bovine and Ovine
-Code 33939
Scanning method: Micro-convex (transvaginal)
Main frequency 5.0 Mhz
Four-Step Multi-frequency:
3.5/5.0/6.0/7.0 Mhz
Applications: cardiology for Feline and Canine, abdominal for Feline
|
