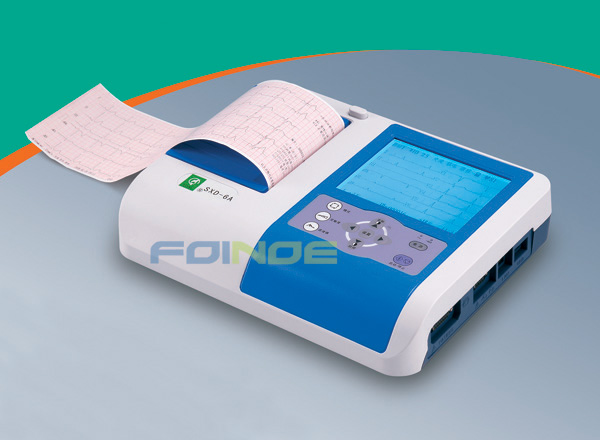

| Descriere produs: Simultaneously acquisition of 12-lead ECG data, IEC Class I, type CF safety standard
Selectable four modes of leads
Function of ECG parameters measurement and distinguish point printing under automatic mode
LCD display of operation menu, ECG waveform, AMP menu and parameter setting
Powerful filter for AC, EMG and DFT interference
AC and DC power supply, rechargeable built-in battery
High resolution and multiple print formats ensure best print quality of ECG waveforms
Capability of the input & output for analog signal
Â
Specifications
Input Circuit: Floating, protection against defibrillator effect
Lead: Standard 12 leads, European leads
Input Impedance: > 50 MΩ
Calibrating Voltage: 1mv±2%
Digital Sampling: 12 bits (simultaneously acquisition of 12 leads ECG data)
DFT Filter Automatic Adjustment
Sensitivity: auto, 2.5, 5, 10, 20mm/mv
Recording System: Thermal- array
Paper Speed:6.25,12.5, 25, 50 mm/s
Safety: Standard IEC class I, type CF
Power Supply AC: 220v±10%, 50/60Hz 1Hz
DC: 14.4v- 2000mAh rechargeable battery
Depolarization Voltage: ±500mv
|
