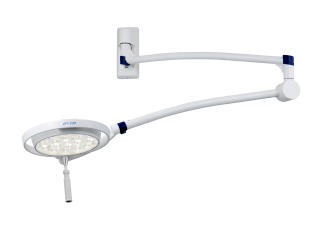

Lampa chirurgicala Mach LED 130

Technical data Mach LED 130 (fixed focus): light system
Light intensity in Lux at 1 meter distance: 50.000
Colour rendering index Ra (1) at 4500 Kelvin :95
Focussable light field size (in cm): 17
Colour temperature (Kelvin): 4500
Electronic light intensity control at the lamphead : 50 -100 %
Temperature increase in head area: 0,5 °C
Total power consumption: 20 W
Number of LED‘s: 19
Life-span of the LED´s: > 40.000 h
Working distance (in cm): 70 - 140
Lamphead diameter (in cm): 33
Height adjustment (in cm): 119

Superiour colour renditionWith outstanding colour rendering indexes Ra = 95 the surgeon recognizes
clearly the tiniest nuances of colour in tissue.
The colour spectrum of the wound is rendered naturally with rich contrast.
The OT-light clearly provides welcome relief for your eyes.

Facetted multi-lens systemA multitude of computer-calculated facetted lenses guarantees homogeneity
and lowest shadiness in the light field. Separately arranged optical systems,
each with one LED module, generate their own light field, which increases
the contrast effect of the OR light. Light intensities of 50.000 Lux can be
attained without difficulty.

Key pad on the lamp housingThe following light functions can be adjusted electronically, such as:
• Switching ON and OFF
• Electronic light intensity control

HandlingDuring development high attention was paid to easy handling and high
ease of maintenance. Furthermore the flow-enhancing ring form and the
minimal surface avoid any heat increase in the surgeon’s head area and
create a perfect laminar flow performance.
The light can be positioned exactly to the wound field with the handle
(pictured sterilisable handle available as an option against surcharge).

Long life-span/low power consumptionThe life-span of more than 40.000 operating hours reduces the costs for
exchanging and replacing the illuminants considerably, compared with the
conventional halogen technology used with former OT-lights. By implementation
of the LED technology the power consumption could be reduced
partially with more than 50%.

Cool lightThe LED technology is much more effective than conventional light sources
such as halogen bulbs. The heat radiation is reduced to a minimum without
using any expensive filter technique. The temperature increase in the
surgeon’s head area is almost nonexistent.
