Monitor Eickemeyer Advisor

4-trace, 10.4 inch Active Matrix Color TFT
display.

Intuitive point and click user-interface.

On-screen trending of all monitored parameters.

Compact - with a maximum weight of 12 pounds.

Integrated handle enhances portability.

Optional high-resolution dual trace printer.

SurgiVet Serial Auto correlation (SAC) Technology.

SurgiVet can custom build your Advisor using the
V9200 as the base.

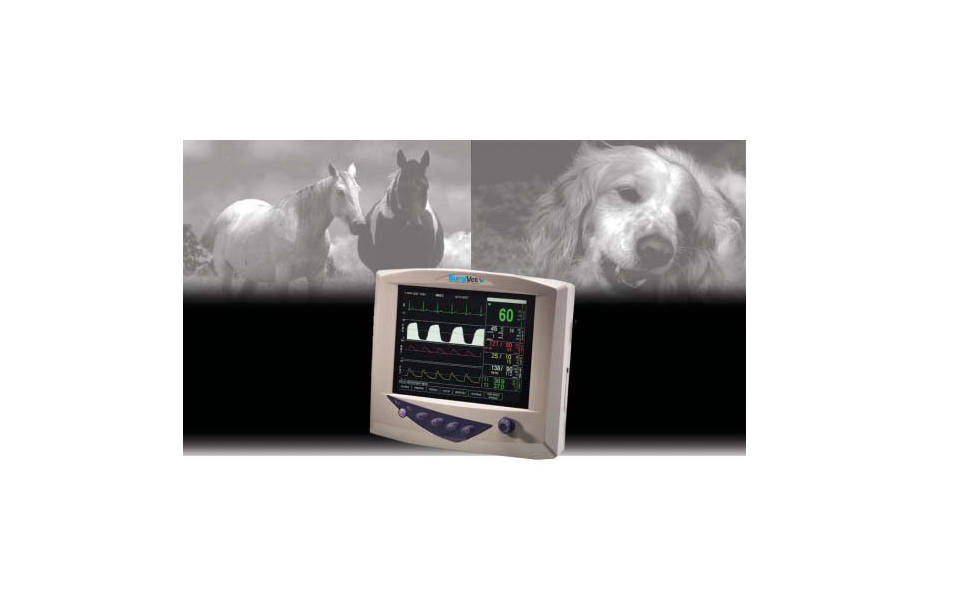

The SurgiVet V9204 Advisor® is a portable multi-parameter
monitor providing the clinician with a variety of monitoring
parameters.

Starting with the base model Advisor, **TheV9200, SurgiVet
has developed a monitor giving you a 3 or 5 lead ECG,
Digital SpO2, Heart Rate, and Non-invasive Blood Pressure.

**The V9201 Advisor® gives you 3 or 5 lead ECG, Digital
SpO2, Heart Rate, and Non-invasive Blood Pressure, End
Tidal CO2 and Respiration. **The V9203 Advisor® includes
all the features of the V9201 with the addition of Dual

Temperatures and Invasive Blood Pressure. **The fullfeatured
SurgiVet V9204 Advisor® has all the parameters of
the V9203 and a built in printer. Add to this the Intuitive
User-interface of the Advisor® monitor’s large 4-trace display,
and a User-accessible PC Card Interface for future
enhancements - it becomes clear the Advisor® monitor
provides a high level of sophistication to meet your specific
needs, yet remains budget friendly.

SurgiVet V9204 Advisor® Monitor
Portable, Multi-Parameter Vital Signs Monitor
SurgiVet V9204 Advisor® Monitor
Portable, Multi-Parameter Vital Signs Monitor
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Two-Year Warranty
Every SurgiVet Monitor is protected by a two-year warranty. All
parts, software and labor are covered for two full years from the
date of purchase.
Litho in USA
©2003 SurgiVet Advisor-03
Other Patents Pending

Phone: 262/513-8500
Fax: 262/513-9069
2 Channel Invasive Pressure - Optional:
Range -50mmHg - 300 mmHg (after zeroing)
Accuracy +1mmHg or +1% (whichever is greater)
Alarm Range -50 - 300mmHg (in 1 mmHg steps)
2 Channel Temperature - Optional:
Range 0-50°C (32-122°F)
Accuracy +0.1°C (+0.2°F) plus temp. sensor
tolerance
Resolution 0.1°C (0.1°F)
Alarm Range 20.0-50.0°C (68-122°F) & Off
Sensor Compatibility YSI 400 or 700 series
Sidestream Capnography - Optional:
Measurement Non-dispersive IR absorption
Measurement Range 0-10% CO2 STPD
Display Range 0-100 mmHg; 0-13.3 kPa; 0-10%CO2
Accuracy +2mmHg or 4% of reading
(whichever is greater) (10%CO2)
Alarm Range 0-100 mmHg; 0-13.3 kPa; 0-10%
CO2 & Off
N2O Compensation Selectable 40% (default = Off )
Averaging 4 breath
Flowrate 140 ml/min+20ml
Printer - Optional:
Dual trace printer provides waveforms, annotation lines, snapshot,
continuous, print on alarms and trend tables.
Dimensions: 12� H x 13-1/4� W x 7� D
30.5 cm H x 34.0 cm W x 18.0 cm D
Weight:
w/out battery or capnograph 12 pounds (5.4kg)
w/battery or capnograph 15 pounds (6.8kg)
Power Requirements:
AC Input 90-120 VAC, 230-240 VAC,
50/60 Hz, 0.6 A
Battery (optional) 1 hour operation, 4 hour recharge
Auxiliary Inputs/Outputs: Serial RS232 Standard
Environmental Specifications:
Operating Temperature 0-40°C (32-104°F)
Storage Temperature -40-75°C (-40 -167°F)
Relative Humidity 15-95% (operating)
(non-condensing) 10-95% (storage)
Standards:
EN60601-1, EN60601-1-1, UL 2601, CSA Std
C22.2 No. 601.1, EN60601-1-2
Regulatory Compliance:
510(k): 982279, K010770, K011177
ISO 9001/EN46001
CATALOG NUMBER: 9204
Specifications: (Nominal):

Displays & Controls:Main Display: 10.4� High-Resolution Active
Matrix Color LCD
Resolution = 640 x 480 pixels
Function Keys: On/Off, BP Zero All, NIBP start/stop
Print start/stop, Alarm Silence,
rotary encoded push-button
control knob

Indicators:AC Power Green LED w/power plug icon
Battery Power Green LED w/battery icon

SpO2:Range 0-100% (functional saturation)
Accuracy +2% @ 70-100% +3% @ 50-69%
Alarm Range 50-100% and Off
Averaging 4,8,16 pulse beat average
Pulse Rate (SpO2) or Heart Rate (ECG):
Range 20-350 bpm (SpO2)
20-240 bpm (NIBP)
20-350 bpm (ECG)
Accuracy +2% bpm or +2% (whichever is greater)
Alarm Range 20-350 bpm & Off (1 bpm steps)
Averaging Fixed at 8 seconds

ECG:Configuration 3 lead standard or 5 lead optional
Lead Selection I, II, III, aVL, aVR, aVF and V
Display Gain X1/2, X1, X2, X4
Defib. Protection Yes
Sweep Speed 12.5 mm/sec, 25mm/sec and 50mm/sec
Non-Invasive Blood Pressure:
Range 20-250 mmHg
Accuracy Meets or exceeds SP10-1992 Standard
for NIBP accuracy
Cuff Pressure Accuracy +3mmHg or +2% (whichever is greater)
Inflation Pressure 50-300 mmHg
Default Inflation Pressure 100 mmHg (Horse)
150 mmHg (Dog)
200 mmHg (Cat)
Alarm Range 20-250mmHg &Off (1 mmHg steps)
