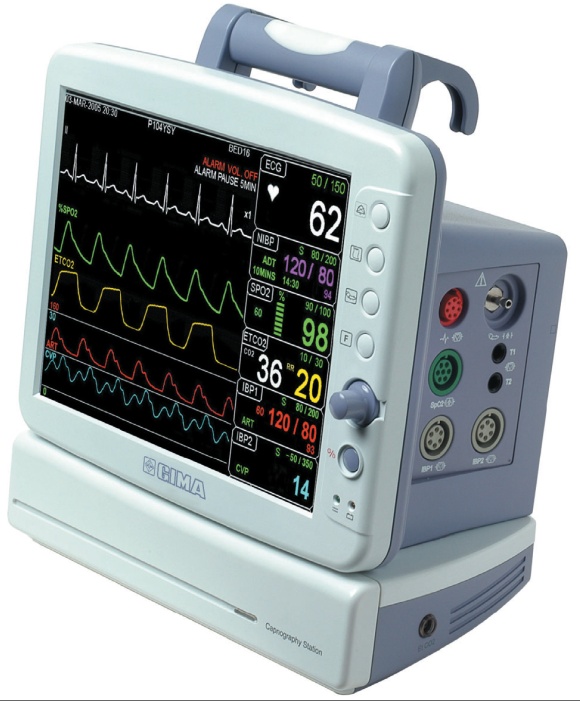

Monitor veterinar

- 10.4" colour TFT screen with 5 wave forms
- High resolution 800x600
- VGA output connecting to an external monitor
- 24 full hours trend and alarm info stored
- Great versatility
- LAN or wireless LAN
- Direct DC input during vehicle transport
- Selectable software language (English, French, Spanish, Italian, German).

GENERAL
Dimensions/Weight: 270x185xh 250 mm/4 kg
Indicators: Up to 5 waves (ECG, SpO2, RR, or EtCO2 IBPx2)
categorized alarms (3 priority levels),
visual alarm lamp handle,
heart rate, SpO2 tone
battery status, external power LED
Thermal printer: 25, 50 mm/sec (paper width 58 mm)
Battery: Li-ion (2.5 hours operating time)
Interfaces: LAN digital output for transferring date
VGA output
DC input connector: 18 VDC, 2.5A max
Operating voltage: 100-240 V, 50-60 Hz
SpO2 % Saturation Range: 0% to 100%
Pulse Rate Range: 0 to 254 bpm
SpO2 Accuracy: 70% to 100% 2 digits
Pulse Rate Accuracy:  2 bpm

ECG
Leads: 3 leads, 5 leads(OPTlON)
Heart Rate Range: 30 to 300 bpm
Heart Rate Accuracy:  3 bpm
Bandwidth: 0.5 Hz to 40Hz
Display Sweep Speeds: 25mm/sec
ECG Size (Sensitivity): 0.5, 1, 2, 4 mV/cm
Pacemaker Detection Mode: Indicator on waveform display
CMRR: >90 dB at 50 or 60Hz
Input Dynamic Range:  5 mVAC,  300 mVDC
Defibrillator Discharge: <5 s
Defib. artifact recovery time: <8 s
Arrhythmia analysis: VTAC/VFIB
VTAC, ASYSTOLIC
Lead-Off Detection with display indicator

NIBP
Technique: Oscillometric
Measurement Modes: Manual: Single measurement
Auto: Automatic intervals of
1, 2, 3, 4, 5, 10, 15, 20, 30 min.
and 1, 2, 4, 8 hr.
Cuff pressure display: 0 to 300 mmHg
B.P. measurement range: Systolic: 40 to 270 mmHg
Mean: 20 to 230 mmHg
Diastolic:10 to 210 mmHg
Adjustable Cuff Inflation Pressure
Respirations
Range: 5 to 120 breaths/min
Accuracy: 3 breaths/min
Temperature Unit
Range: 15 to 45C (59F to 113F)
Accuracy:  0.1 C
Compatible with: YSI Series 400 Temperature Probes

IBP
Channels: 2
Measuring range: -50 to 300 mmHg
Measuring accuracy:  1 mmHg  1 digit (<100 mmHg)
 1 %  1 digit (>100 mmHg)
Pulse rate counting range: 0 to 300 beats/min
Zero balancing: Yes
Range:  200 mmHg
Accuracy:  1 mmHg
Drift:  1 mmHg over 24 hours
Transducer sensitivity: 5μV/V mmHg
EtCO2 Method: Side Stream
Measurement mode: Microstream
Measurement range: 0~99 mmHg
Respiration range: 0~150 bpm
Accuracy:  2 mmHg,0~40 mmHg
 5%, 41~76 mmHg
 10%, 77~99 mmHg
Resolution: 1 mmHg
Apnea alarm: YES

Standard accessories :

-5 lead vet. cable (ECG)
- Disposable electrodes: 10 pcs
- NIBP tubing - 3m
- Reusable adult cuff 25-35 cm
- Reusable child cuff
- SpO2 sensor - reusable
- SpO2 sensor extension cable 2 m
- Thermal printer 58 mm
- DC adaptor (18 VDC, 2.5A)
- Battery
- User manual: English, Italian
